Ce H07V-R Grounding Wire Approvals Ce1×4mm²~35mm² PVC Virgin Material

Name: Ce H07VR Grounding Wire Approvals Ce14mm35mm PVC Virgin Material
Brand: SANGSOLAR
Price: 1 USD

Model Number : SANGSOLAR

Brand Name : SANGSOLAR

Certification : CE/TUV

Payment Terms : TT/LC/Alibabashop

Place of Origin : China

MOQ : 2 sets

Price : Negotiated

Packaging Details : Carton on Pallet

Delivery Time : 10-30days

Supply Ability : 50000sets

Cross section : 4

Conductor construction n/mm±0.015 : 48x0.3

Conductor stranded mm±0.02) : 2.4

Sheath medium thickness : 0.8

Cable ODmm±02 : 4.2

Conductor Dc resistance(Ω/Km) : 4.61

Contact Now

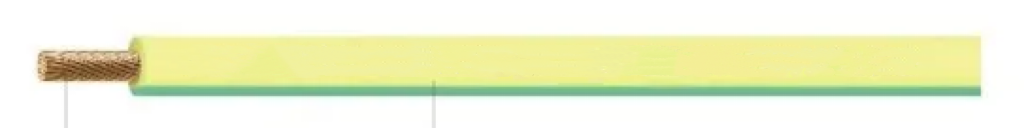

CE H07V-R GROUNDING WIRE

Approvals CE1×4mm²~35mm²

SAFE AND RELIABLE

Environmental friendly PVC virgin material

Good insulation,scratch/abrasion resistance and good toughness

TECHNICAL DATA

Rated voltage (V):U₀IU450/750V

·Ambient Temperature:-15℃~+70℃,laid at≥0℃

·Allowable bending radius:≥4xD(D<25mm),≥6xD(D≥25mm)

Short circuit temperature:110℃/5s

·Executive standard:EN50525-2

Ce H07V-R Grounding Wire Approvals Ce1×4mm²~35mm² PVC Virgin Material

THE STRUCTURE OF CABLE(Subject To The Latest Specifications)

Cross section	Conductor construction n/mm±0.015	Conductor stranded mm±0.02)	Sheath medium thickness	Cable ODmm±02	Conductor Dc resistance(Ω/Km)
4	48x0.3	2.4	0.8	4.2	4.61
6	78x0.3	3	0.8	5.1	3.08
10	80x0.39	4	1	6.5	1.83
16	120x0.39	5	1	7.6	1.15
25	96x 39	6.3	1.2	9.2
35	276x0.39	7.4	1.2	10.3	0.524
50	190x0.55	9.2	1.4	12	0.387
