LiFePO4 Lithium Battery Series LFP5.12KWH51.2V-P20R1 16S1P 100 ah

Product Categories

Beijing Shan Hu International Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: LiFePO4 Lithium Battery Series LFP512KWH512VP20R1 16S1P 100 ah
Brand: SANGSOLAR
Price: 1 USD

Model Number : SANGSOLAR

Brand Name : SANGSOLAR

Certification : CE/TUV

Payment Terms : TT/LC/Alibabashop

Battery Type : LiFePO4

Pack Mode : 16S1P

Nominal Voltage (V) : 51.2

Nominal Capacity (AH) : 100

Energy (WH) : 5120

Continuous Discharge Current (A) : 50

Place of Origin : China

MOQ : 2 sets

Price : Negotiated

Packaging Details : Carton on Pallet

Delivery Time : 10-30days

Supply Ability : 50000sets

Contact Now

Features

A grade brand new prismatic LiFePO4 cells

≥4000 cycles @80% DOD(25℃, 0.5C )

Over charge, over discharge, over temperature,

low temperature, over current and short circuit protection

Cell balance function

Support RS485, CAN,RS232 communication

Max.8 battery packs can be connected in parallel

Technical Speciﬁcations

Model	LFP5.12KWH51.2V-P20R1
Battery Type	LiFePO4
Nominal Voltage (V)	51.2
Nominal Capacity (AH)	100
Energy (WH)	5120
Pack Mode	16S1P
Continuous Discharge Current (A)	50
Charge Cut-off Voltage (V)	57.6
Discharge Cut-off Voltage (V)	41.6
Max.Charge Current (A)	50
Max.Discharge Current (A)	100
Peak Discharge Current (A)	130@10S
Recommend Discharge Current (A)	50
Recommend Discharge Depth (％)	80
Cycle Life	≥4000 cycles (25°C, 0.5C ) 80% DOD
Communication	RS485 CAN RS232
Display	LED
Charge&Discharge Temperature (℃)	Charge: 0°C~+55°C / Discharge: -20°C~+60°C
Optimal Storage Temperature (℃)	5℃~+35℃
Recommend Storage Humidity	20%~80%
Terminal	M6
Dimensions (LWH) (mm)	532482177
Weight (Kg)	45.4±0.5
Certiﬁcate	UN38.3,MSDS,IEC62619,EN IEC61000-6-1/2/3/4
IP Class	IP20

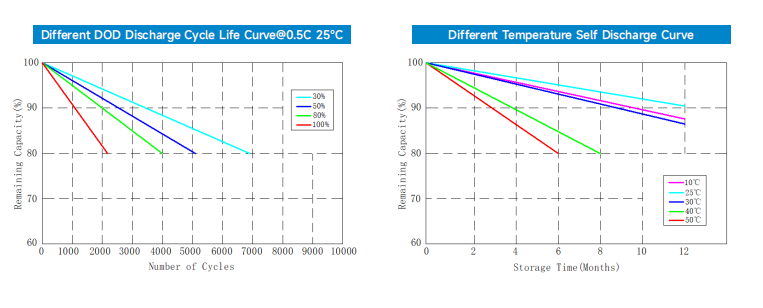

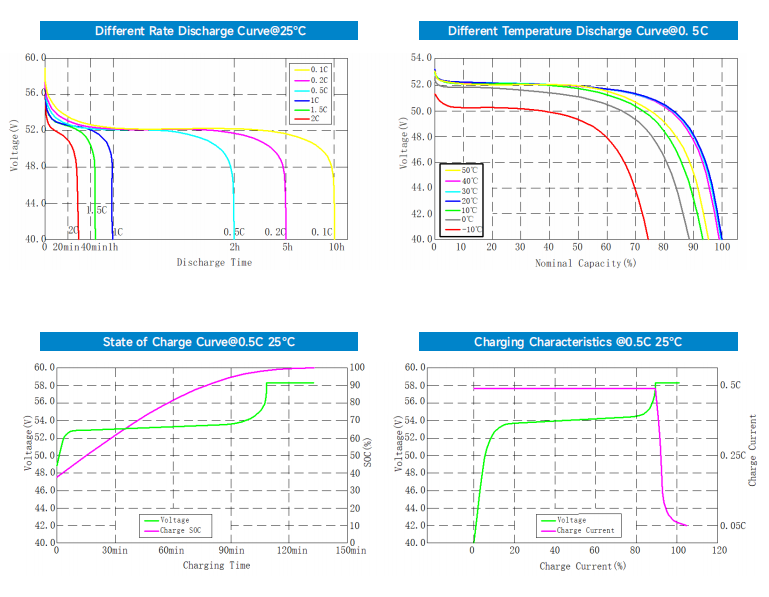

Performance characteristics
